Commercial Robotic Lawn Mowers

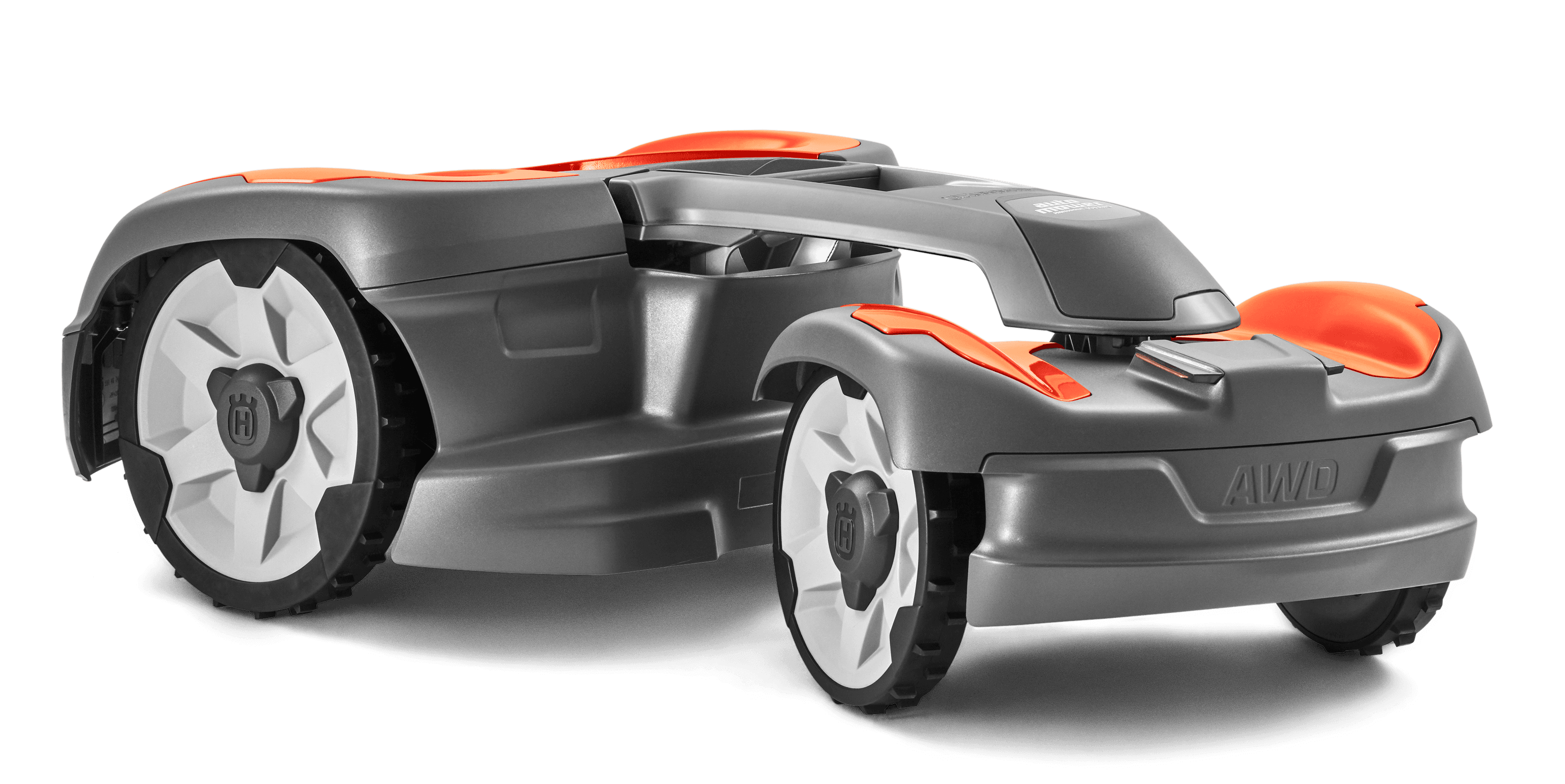

AUTOMOWER® 535 AWD

$7,599.00Rec. retail price incl. GST SKU: 970651706
  • Area capacity3500 m²
See financing options

Product description

Advanced and highly effective robotic mower with all-wheel-drive developed for professional use. The model is designed to take care of lawns up to 3,500 m² and navigates obstacles, tough terrain and slopes of up to 70% (or 35⁰). Adapted for public installations with simplified control for easy interaction. Object detection through ultrasonic technology, remote control and surveillance—together with the rest of your product fleet— with Husqvarna Fleet Services™. Dealer installation service available. Installation kits sold separately.

5-year warrantyFinance options

Product Information

Features (25)

Automower® AWD models feature technology that optimizes the control of each individual wheel in order to enable superior operation in the most demanding terrain. With an impressive slope performance that handles 70 % (35°) incline. Automower® AWD rewrites the rules for autonomous maintenance of green spaces, improving the safety of your workforce. image

Automower® All-Wheel Drive

Automower® AWD models optimizes the control of each individual wheel in order to enable superior operation in the most demanding terrain.

Automower® AWD models are built with an articulated rear body design that enables truly excellent maneuverability for navigation on complex lawns and through passages. The rear body also has a pivoting capability, considerably enhancing the traction in rough terrain, making the most out of the AWD operation. image

Pivoting rear body design

Built on an articulated rear body design with a pivoting capability, that enables truly excellent maneuverability for navigation on complex lawns and traction in rough terrain.

Husqvarna AIM Technology uses onboard GPS and sensors to create a virtual map of the installed area. The map is visible in Automower® Connect, and includes the location of boundary and guide wires. With AIM Technology via the app it is easy to create work areas with unique cutting heights and schedules, or temporary stay-out zones when needed. image

AIM Technology

Uses onboard GPS and sensors to create a virtual map of the installed area. Create work areas with unique cutting heights and schedules, or temporary stay-out zones when needed via the Automower® Connect app.

Interface adapted for professional handling, meaning all settings and controls managed remotely through Husqvarna Fleet Services smartphone app or via PC/tablet. Controls on product; status LED indication and START / STOP functionality. Simplifies use for inexperienced users and minimizes serious impact on the product in case of vandalism. image

Pro user interface

Interface adapted for professional remotely handling through Husqvarna Fleet Services. Controls on product; status LED indication and START / STOP functionality.

An onboard GPS system creates a map of the garden, including where the boundary and guide wires are installed. Husqvarna Automower® will then register which parts of the garden it has covered and adjusts its mowing pattern accordingly. This will ensure optimised lawn coverage and an excellent cutting result. image

GPS-assisted navigation - PATENTED

An onboard GPS system creates a map and registers which parts of the garden it has covered and adjusts its mowing pattern accordingly.

Built-in sensors using ultrasonic technology helps the mower to detect objects, lowers the speed and avoid hard collisions. image

Remote object detection

Built-in sensors helps the mower to avoid hard collisions by detection of objects.

Just a push on the PARK button to call back the mower to the charging station, in areas like public football pitches, golf courses etc. image

PARK button on charging station - PATENTED

A push on the PARK button to call back the mower to the charging station.

Large coarse-tread wheels provide excellent traction even if the surface is slippery. The mower handles slopes up to 70%. image

Manages slopes up to 70%

Large coarse-tread wheels provide excellent traction on slopes up to 70%.

Adjusts the working time to the lawn’s growth rate, meaning that Husqvarna Automower® will maximise its mowing time during periods of strong grass growth. In sunny or dry weather, or late in the season, the mower will spend less time mowing, which decreases wear on the lawn and mower. image

Weather timer

Adjusts the working time to the lawn’s growth rate, which decreases wear on the lawn and mower.

Husqvarna Automower® automatically senses narrow passages and finds its way even through the smallest passages. It will vary its route through the passage to avoid unpleasant tracks. image

Automatic passage handling - PATENTED

Automatically senses narrow passages and finds its way even through the smallest passages.

The cutting height is swiftly adjusted by the electrically operated height adjustment, easily accessible from the main menu or via the Automower® Connect app. image

Electric height adjustment - PATENTED

Electrically operated cutting height adjustment.

Triple guidewires reduces searching time even if the installation area is really large, complex or divided into several areas. image

Triple guide wires - PATENTED

Triple guidewires reduces searching time in all challenging gardens.

A uniform cutting result throughout the lawn thanks to the possibility to start the mowing at five different remote locations along the patented guide wire, out from the charging station. The larger grass area, the better and more important with several starting points.<br/>With active GPS assisted navigation (specific models), the remote starting points are autoset and manual settings are not needed. image

Remote start points x5

Possibility to start the mowing at five different remote locations along the patented guide wire, out from the charging station.

Products equipped with Automower Connect®/Husqvarna Fleet Services™ immediately begin tracking its GPS position and send notifications to your devices. Makes the installation extra safe and minimizes the risk of theft. image

Theft protection by GPS

Equipped with GPS based geofence including flash notifications to your devices.

Rubber-made front bumper makes the mower more resistant to recurring collisions with trees, shrubs and other objects within the installation. image

Front bumper

Makes the mower more resistant to recurring collisions with trees, shrubs and other objects.

Multiple theft protection features built in for high security. If the mower is carried away a high-sounding alarm starts and can only be deactivated with the mower's unique PIN code. image

Theft protection by alarm/PIN code

Equipped with a high-sounding alarm and PIN code lock.

When Automower® needs more power, it finds its own way back to the charging station. image

Automatic charging

The mower automatically finds its charging station

If Automower® is lifted off the ground or tips over, the cutting automatically shuts off. In addition, the blades are rotating far from the outer edge of the machine. If Automower® meets an obstacle it will stop and redirect itself without causing any damage. image

Lift & Tilt sensors

If Automower® is lifted off the ground or tips over, the cutting automatically shuts off.

Automower® Connect gives you full control of the mower right in your smartphone. You can easily send start, stop and park commands, check and adjust settings. If required also receive alarms and track your mower’s position in case of theft – wherever you are.<br/>10 years mobile data contract included*. Standard on X-line and 500 series, optional for all 300-400 series.<br/><br/>*The included Automower® Connect 10 years contract only applies if a third party provides sufficient mobile coverage in the area" image

Automower® Connect

Automower® Connect gives you full control of the mower right in your smartphone. Long distance connectivity including geofence and notification functionality.

By choosing this product, you can feel confident that it produces lower carbon emissions during active use compared to a traditional petrol product. This battery-driven product does not emit any CO₂ during use while still providing the power and quality that you expect from a Husqvarna product. However, it’s important to note that CO₂ emissions are generated during other stages of the product´s lifecycle, such as production, charging and end-of-life disposal. image

Low carbon emissions

This product does not emit CO₂ emissions during use.

Automower® can be outside around the clock and is designed to function properly and unattended regardless of the weather conditions. Automower® is built to withstand harsh climates without any problems. image

Weather proof

Designed to function properly and unattended regardless of the weather conditions.

Husqvarna Automower® cuts just a little but frequently, which assures a nice and healthy lawn. It is equipped with sharp razor-like blades made of strong carbon steel mounted on a robust cutting disc system. This provides for efficient operation and extremely low energy consumption. image

Unique cutting system

Equipped with sharp razor-like blades mounted on a robust cutting disc system for best cutting performance and low energy consumption.

Wheel motors with 2 step gearboxes, a new technology that enables ultra-silent drive. Gives an outstanding performance in perceived noise level and enables night time operation or 24/7 mowing in all kind of neighborhoods. image

Ultra-silent drive

Wheel motors with 2 step gearboxes, a new technology that enables ultrasilent drive.

For silent and trouble-free operation it automatically detects imbalance in the cutting system. Imbalance could be caused by missing, double mounted or damaged blades. image

Balance control

Automatically detects imbalance in the cutting system.

With the easily programmable weekly timer function, it is possible to precisely schedule time intervals for Automower® to work. image

Scheduling

Easily programmable weekly timer function.

Specifications

Art No: 970651706
Cutting width22 cm
Weight (complete product w/o side packed articles)17.0 kg
Maximum slope performance inside installation70 %
Area capacity3500 m²
Area capacity per hour146 m²
Battery capacity5.0 Ah
Battery pack weight0.7 kg
Battery voltage18 V
Charging current7 A
Cutting height max70 mm
Cutting height min30 mm
Extra blades6 pcs
Loop wire0 m
Maximum slope performance at boundary50 %
Mean energy consumption at maximum use3500 m²
Mean energy consumption per month at maximum use24 kWh
Product size height29 cm
Product size length93 cm
Product size width55 cm
Stakes0 pcs
Typical charging time30 min
Typical mow time on one charge100 min
